This post is really under the category of “hacking for fun”. I wanted to knock up a quick demo for a talk about Windows 8.1 apps and I wanted to show that it’s possible to connect to interesting bits of kit from an app and the 2 of the “interesting” bits of kit that I came up with where;
- The Kinect for Windows V2 sensor.
- The Sphero.
and I tied them together with some JavaScript code such that I could control the rotation of a Sphero device with my left hand by moving it away from my body and such that I could drive the sphero with my right hand by “pushing” it away from my shoulder.
I had a few people asking me how that was put together and so I thought I’d blog that here in the manner of a “Recipe” where I’ll try and keep the code/HTML as short as possible to reproduce what I showed at the recent “Native Summit” event.
Step 1 – Beg, Borrow, Buy a Sphero
You’re going to need a Sphero. I got mine from Amazon and I’ve linked the image below to them. Other online stores are available.
Step 2 – Beg, Borrow, Buy a Kinect for Windows V2
You’re also going to be needing a Kinect for Windows V2 sensor. I got mine from Andrew at work. He’s not likely to be able to get you one so I think you’d need to buy one. I’ve hyperlinked to the UK Microsoft Store from the image below;
I’m not 100% sure whether other stores are available on this one.
Step 3 – Get a Dev Environment for Windows 8.1 Apps Set Up
You’re going to need somewhere to run Visual Studio 2013 on Windows 8.1. This is most likely going to be a PC but I suspect it can also be a Mac whether running Windows virtualised or dual-booted but I should say that I haven’t tried working with Kinect and Sphero on anything other than my Dell XPS 13.
The best plan to go get bits is probably to follow the “Get Set Up” link below;
Step 4 – Pair Your Sphero
Once you’ve got your Sphero charged up and have it switched on ( double-tap ) you need to pair it up with Windows so you go to your bluetooth device settings;
and pair it up. I didn’t really have any challenges in getting that done – I think it stumbled a bit on the first attempt but worked 2nd time around for me and has stayed working since.
Step 5 – Try an Official Sphero App
The chances are that if the Sphero app in the Windows Store doesn’t work for you then your own code isn’t likely to so go grab that app by clicking on the image below;
and give that a quick try.
Step 6 – Get the Kinect SDK
You’re also going to need the Kinect for Windows V2 SDK so go and download that and install it – linked from the picture below;
Step 7 – Get the Robotkit Library
I also made use of the Robotkit library. There’s possibly another or a better way of doing this but it’s the direction that I took. You can download that by going up to the official Sphero developer centre;
https://developer.gosphero.com/
and then finding your way across to this github project;
https://github.com/orbotix/Sphero-Win-SDK
and in there you’ll find Robotkit.dll which is a .NET library that you can make use of.
You’ll also find some other bits and pieces that you might also find useful in the sample there.
Step 8 – Write Some Code
The demo that I showed was written in JavaScript so I’ll try and produce a minimalistic version of that here. The Robotkit.dll library is in .NET so I need to wrap something around it to turn it into a WinRT component that can be used from JavaScript.
The starting point for that is then to make a new project in Visual Studio of type “Windows Runtime Component”
and then add a reference to that Robotkit.dll that I got from the Sphero github project;
and then I just wrote a little class called SpheroControl which offered up some of the functionality that’s within that Robotkit library in as simple, short a way as I could;
namespace MySpheroLibrary
{
using RobotKit;
using System;
using System.Threading.Tasks;
using Windows.Foundation;
public sealed class SpheroControl
{
Sphero sphero;
int r;
int g;
int b;
int rotation;
float backlightBrightness;
private SpheroControl(Sphero sphero)
{
this.sphero = sphero;
this.r = this.g = this.b = 0;
this.backlightBrightness = 0.0f;
this.rotation = 0;
}
public int Red
{
get
{
return (this.r);
}
set
{
this.r = value;
this.SetColour();
}
}
public int Green
{
get
{
return (this.g);
}
set
{
this.g = value;
this.SetColour();
}
}
public int Blue
{
get
{
return (this.b);
}
set
{
this.b = value;
this.SetColour();
}
}
public float BacklightBrightness
{
get
{
return (this.backlightBrightness);
}
set
{
this.backlightBrightness = value;
this.sphero.SetBackLED(this.backlightBrightness);
}
}
void SetColour()
{
this.sphero.SetRGBLED(this.r, this.g, this.b);
}
public int Rotation
{
get
{
return (this.rotation);
}
set
{
this.rotation = value;
this.sphero.Roll(this.rotation, 0);
}
}
public void Roll(float speed)
{
this.sphero.Roll(this.rotation, speed);
}
public static IAsyncOperation<SpheroControl> GetFirstConnectedSpheroAsync()
{
Task<SpheroControl> task = InternalGetFirstConnectedSpheroAsync();
return (task.AsAsyncOperation());
}
static Task<SpheroControl> InternalGetFirstConnectedSpheroAsync()
{
TaskCompletionSource<SpheroControl> task = new TaskCompletionSource<SpheroControl>();
var provider = RobotProvider.GetSharedProvider();
EventHandler<Robot> handler = null;
handler = (s, robot) =>
{
provider.DiscoveredRobotEvent -= handler;
handler = (sender, cxnRobot) =>
{
provider.ConnectedRobotEvent -= handler;
task.SetResult(new SpheroControl((Sphero)cxnRobot));
};
provider.ConnectedRobotEvent += handler;
provider.ConnectRobot(robot);
};
provider.DiscoveredRobotEvent += handler;
provider.FindRobots();
return (task.Task);
}
}
}
Now, this was put together pretty quickly and I guess the most “tricky” part of it is the bit that’s trying to get hold of the first Sphero device that it can find connected and that’s mostly a bit “tricky” because I chose to inline a bunch of event handlers and I have to try and cope with adding/removing them. There’s no error handling in there as you’d spot.

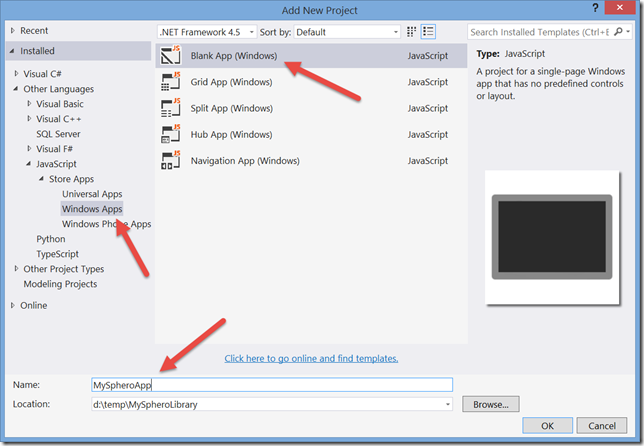

However, with that in place I can now create a Windows 8.1 project in JavaScript and make use of it so it’s back to Solution->Add->New Project;
and inside of that JavaScript project I need to reference both the MySpheroLibrary project that I’ve just made and the Kinect SDK.
The Kinect SDK involves native code so I need to choose a processor architecture to work with and so I can just open up the “Configuration Manager” and switch it to (e.g.) x64;
this always feels a little “weird” to me when it comes to working in JavaScript but if we take a dependency on underlying native code then it’s got to be done as that native code has to be built for a processor architecture.
The other thing I need to do is to tweak my application manifest. I need to set up;
and I also need to open up the manifest as an XML file and make sure that I’ve got (taken from the sample I think);
From there, I could pretty much leave my UI alone. The blank project template will give me this;
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>MySpheroApp</title>
<!-- WinJS references -->
<link href="//Microsoft.WinJS.2.0/css/ui-dark.css" rel="stylesheet" />
<script src="//Microsoft.WinJS.2.0/js/base.js"></script>
<script src="//Microsoft.WinJS.2.0/js/ui.js"></script>
<!-- MySpheroApp references -->
<link href="/css/default.css" rel="stylesheet" />
<script src="/js/default.js"></script>
</head>
<body>
<p>Content goes here</p>
</body>
</html>
and that’s fine. It’s worth saying that there’s absolutely no need to use WinJS here, I’m just leaving it in place as I’m not planning to display any UI at all here in the interests of keeping things short.
The blank template also adds a bunch of code which I would strip down to this;
(function () {
"use strict";
var app = WinJS.Application;
app.onactivated = function (args)
{
initialiseSphero();
initialiseKinect();
};
app.start();
})();
and then there’s a need to write those 2 initialisation functions and a few helper functions to wire things together. I cooked this up in a different form without any UI and it ended up looking as below;
(function ()
{
"use strict";
var app = WinJS.Application;
var sphero = null;
var sensor = null;
var reader = null;
var kinectSDK = WindowsPreview.Kinect;
var magicNumbers =
{
xRangeMin : 0.1,
xRangeMax: 0.5,
zRangeMin : 0.2,
zRangeMax: 0.7,
};
// for angles 0 to 360
magicNumbers.xRangeMultipler = 360.0 / (magicNumbers.xRangeMax - magicNumbers.xRangeMin);
// for speeds 0 to 1
magicNumbers.zRangeMultiplier = 1.0 / (magicNumbers.zRangeMax - magicNumbers.zRangeMin);
app.onactivated = function (args)
{
var promise = initialiseSpheroAsync();
promise.done(
function ()
{
initialiseKinect();
});
};
function initialiseSpheroAsync()
{
var promise = MySpheroLibrary.SpheroControl.getFirstConnectedSpheroAsync();
promise.done(
function (foundSphero)
{
sphero = foundSphero;
sphero.backlightBrightness = 1.0;
sphero.red = 255;
}
);
return (promise);
}
function initialiseKinect()
{
sensor = kinectSDK.KinectSensor.getDefault();
sensor.open();
// we're interested in skellingtons...
reader = sensor.bodyFrameSource.openReader();
reader.onframearrived = onFrameArrived;
}
function onFrameArrived(e)
{
var frame = e.frameReference.acquireFrame();
var body = null;
var i = 0;
var leftHand, rightHand, leftHip, rightShoulder;
var leftDistance = 0;
var rightDistance = 0;
var bodies = null;
// we don't always get frames...
if (frame != null)
{
if (!bodies)
{
bodies = new Array(frame.bodyCount);
}
// populate the array of bodies...
frame.getAndRefreshBodyData(bodies);
// try and find the first one that we have identified as tracked...
for (i = 0; i < frame.bodyCount; i++)
{
if (bodies[i].isTracked)
{
body = bodies[i];
break;
}
}
// if we got one...
if (body)
{
leftHand = getJoint(body, kinectSDK.JointType.handLeft);
rightHand = getJoint(body, kinectSDK.JointType.handRight);
leftHip = getJoint(body, kinectSDK.JointType.hipLeft);
rightShoulder = getJoint(body, kinectSDK.JointType.shoulderRight);
if (areTracked(leftHand, rightHand, leftHip, rightShoulder))
{
rotate(leftHand.position, leftHip.position);
drive(rightHand.position, rightShoulder.position);
}
}
frame.close();
}
}
function getJoint(body, jointType)
{
var joint = null;
// I'm sure there's a better way of moving through these slightly odd
// feeling iterators in JS...
var iter = body.joints.first();
while (iter.hasCurrent)
{
if (iter.current.key === jointType)
{
joint = iter.current.value;
break;
}
iter.moveNext();
}
return (joint);
}
function areTracked()
{
var tracked = true;
for (var i = 0; ((i < arguments.length) && (tracked)) ; i++)
{
tracked = arguments[i] &&
(arguments[i].trackingState === kinectSDK.TrackingState.tracked);
}
return (tracked);
}
function rotate(leftHandPosition, leftHipPosition)
{
var xDistance = Math.abs(leftHandPosition.x - leftHipPosition.x);
var clampedValue = 0;
if ((xDistance >= magicNumbers.xRangeMin) && (xDistance <= magicNumbers.xRangeMax))
{
clampedValue =
(xDistance - magicNumbers.xRangeMin) * magicNumbers.xRangeMultipler;
sphero.rotation = clampedValue;
}
}
function drive(rightHandPosition, rightShoulderPosition)
{
var zDistance = Math.abs(rightHandPosition.z - rightShoulderPosition.z);
var clampedValue = 0;
if ((zDistance >= magicNumbers.zRangeMin) && (zDistance <= magicNumbers.zRangeMax))
{
clampedValue =
(zDistance - magicNumbers.zRangeMin) * magicNumbers.zRangeMultiplier;
sphero.roll(clampedValue);
}
}
app.start();
})();
and that’s all there is to the very basics of it – you could then add some UI and call more functions and error handling and so on and so forth but it works reasonably well for me.
That code’s here for download if you want to take it as it is.
Enjoy.
Mike Taulty
