Windows 10 Anniversary Update, Desktop App Converter Preview – Starting from Source

Following up on this post;

Initial Experiments with the “Desktop App Converter” Preview

and continuing the theme of ‘experimentation’ with the Desktop App Converter I wanted to see what it was like to start from a place where I had the source code for a desktop application and wanted to build it out into a .appx installer that could potentially go into the Windows Store.

It’s worth flagging that there are official samples that you can look at around this area and you’d find those on github here;

Desktop app bridge to UWP Samples

For my experiments, I thought I’d start small.

That’s “Hello World”-style small Smile

Making Hello World

I’m a world-class expert when it comes to building “Hello World” and so I made a new WPF application and had it show “Hello World” on the screen.

I had to dig deep but within only a few days I had this working Winking smile

Capture

and I even “Gold plated” it by adding a ViewBox around the TextBlock here Winking smile

Ok, so I’ve got a WPF “Hello World” on .NET Framework 4.6.2 and Visual Studio knows how to build a .exe from it and so how do I package that into a .appx format given that I don’t have an installer for it right now?

Making a Blank App Manifest

There’s documentation to help on this topic so I followed it;

Manually convert your Windows desktop application to a Universal Windows Platform (UWP) app

and in doing so I had to think about a few things. Firstly, I made myself a new certificate and I did that by following the docs and using the specific command;

MakeCert.exe -r -h 0 -n “CN=mikedesktop” -eku 1.3.6.1.5.5.7.3.3 -pe -sv my.pvk my.cer

pvk2pfx.exe -pvk my.pvk -spc my.cer -pfx my.pfx

and that gave me a common name of mikedesktop for the publisher here and I put that certificate into my machine’s trusted roots.

I also dug into this document that I found useful;

App packages and deployment (Windows Runtime apps)

and I also found it useful to build a Blank UWP app in Visual Studio and look at the AppxManifest.xml file that gets build as part of that process by way of having a comparison that’s in a ‘known good state’.

I added a few files to my blank WPF project as below;

Capture

I should make it clear that I’m trying to make my life easy here rather than trying to do something smart and I wrote that appxmanifest.xml file to look like this;

<?xml version="1.0" encoding="utf-8" ?>
<Package
   xmlns="http://schemas.microsoft.com/appx/manifest/foundation/windows10"
   xmlns:uap="http://schemas.microsoft.com/appx/manifest/uap/windows10"
   xmlns:rescap="http://schemas.microsoft.com/appx/manifest/foundation/windows10/restrictedcapabilities">
  <Identity Name="a2050516-ad7b-4170-ac1d-cb23a21de780"
    ProcessorArchitecture="x64"
    Publisher="CN=mikedesktop"
    Version="1.0.0.0" />
  <Properties>
    <DisplayName>Hello World Desktop App</DisplayName>
    <PublisherDisplayName>Mike Taulty</PublisherDisplayName>
    <Description>Amazing hello world desktop application</Description>
    <Logo>assets\StoreLogo.png</Logo>
  </Properties>
  <Resources>
    <Resource Language="en-us" />
  </Resources>
  <Dependencies>
    <TargetDeviceFamily Name="Windows.Desktop" MinVersion="10.0.14316.0" MaxVersionTested="10.0.14316.0" />
  </Dependencies>
  <Capabilities>
    <rescap:Capability Name="runFullTrust"/>
  </Capabilities>
  <Applications>
    <Application
      Id="HelloWorldDesktopApp"
      Executable="HelloWorldDesktopApp.exe"
      EntryPoint="Windows.FullTrustApplication">
      <uap:VisualElements
       BackgroundColor="#464646"
       DisplayName="Hello World Desktop App"
       Square150x150Logo="assets\Square150x150Logo.png"
       Square44x44Logo="assets\Square44x44Logo.png"
       Description="This is my Hello World desktop app" />
    </Application>
  </Applications>
</Package>

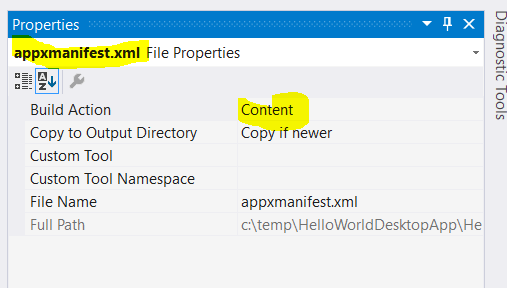

and I made sure that the appxmanifest.xml, and the files within my assets folder all got copied to the output folder as illustrated on appxmanifest.xml below;

Capture

I should say that I copied the contents of the assets folder out of a regular, blank UWP project.

It’s also perhaps worth flagging that I set up both x86 and x64 platform targets and I worked solely within the x64 configuration as I think (i.e. not sure) that support for desktop apps packaged in .appx is 64-bit right now and I wasn’t sure how a ‘AnyCPU’ packaging would or wouldn’t work. I need to dig into that more to be sure of what does/doesn’t work.

Making a .APPX

With that set up, I went via what I thought might be the simplest route to getting a .APPX file created and I added the makeapp.exe tool to my project’s ‘post-build step’ (graphically rather than using the MSBuild AfterBuild task) in order to make that .appx;

“c:\program files (x86)\windows kits\10\bin\x86\makeappx.exe” pack /d “$(TargetDir).” /p “$(TargetDir)$(ProjectName).appx”

and that seemed to work reasonably well although it’s worth saying that I’m adding things like .pdb files into my .appx package here because they happen to be in the output folder from my build.

Signing the .APPX

I added a second post-build step to sign the .APPX using the certificate that I’d bundled into my Visual Studio project;

“c:\program files (x86)\windows kits\10\bin\x86\signtool.exe” sign -f “$(ProjectDir)Certificates\my.pfx” -fd SHA256 -v “$(TargetDir)$(ProjectName).appx”

and that also seemed to work out fine and I had a signed .APPX file.

Installing the .APPX

Once I’ve got a .APPX signed with a certificate that my machine trusts, I can simply ask the Windows shell to launch the .APPX (or use add-appxpackage) and it pops some UI;

Capture

and then it installs the app (which was too quick for me to capture as a screen shot) and then the app’s ready to go;

Capture

and runs up as you’d expect;

Capture

and that’s all fine.

Calling into UWP APIs

A desktop app can make use of some of the UWP APIs whether or not that desktop app has been packaged as a UWP app. There’s a good article here that talks about this;

UWP APIs callable from a classic desktop app

and that partitions APIs into;

  • APIs that need the calling app to have a package identity (which I read as “packaged as UWP”)
  • APIs that will work without a package identity.

beyond that, there’s a more detailed list on this page;

Supported UWP APIs for converted desktop apps

So in my desktop application I should be able to make use of an API like SpeechSynthesizer and so I thought I’d try that out and it wasn’t quite as simple as I might have hoped but it wasn’t too bad.

The steps that I took went something like this.

Edit the .csproj file to add TargetPlatformVersion

The first thing I did was to unload the project in visual studio (using the right mouse menu on the solution explorer) so that I could edit the XML and I used that to add;

Capture

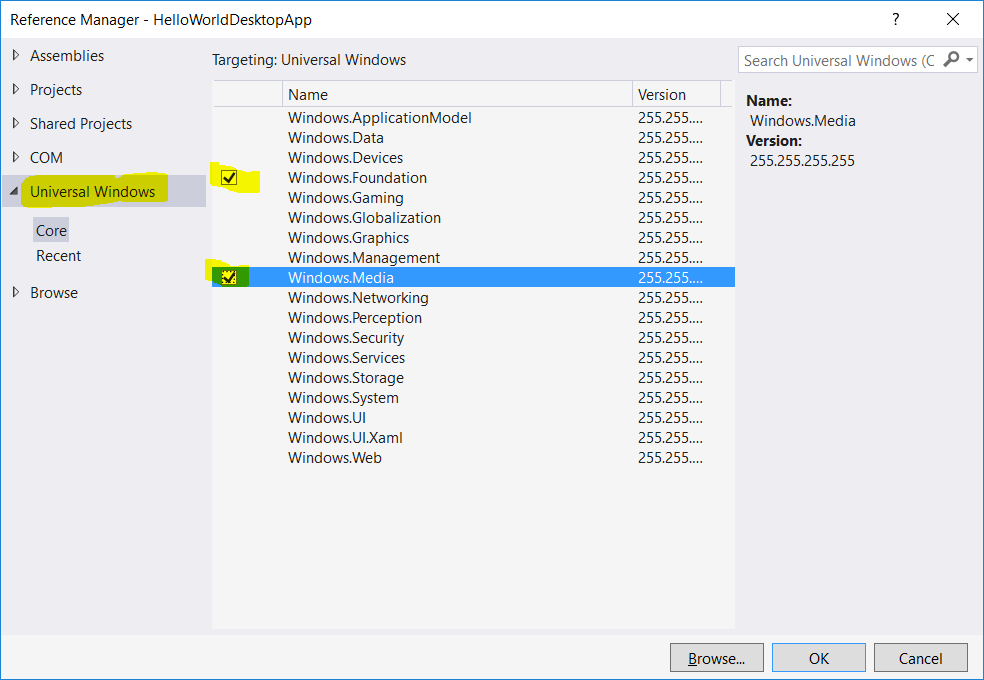

and that then switches on this section of the References dialog where I added references to Windows.media and Windows.foundation;

Capture

That might work for some scenarios but I found that types like IAsyncOperation<> weren’t present and so I went out and referenced Windows.winmd instead as below;

Capture

and that reference is coming from c:\program files (x86)\Windows Kits\10\UnionMetadata\Windows.winmd.

However, once I started writing async code, this left me without definitions of GetAwaiter() on those pesky IAsyncOperation<> types and I then need to go off and reference System.Runtime.WindowsRuntime.dll as below;

Capture

and that reference is coming from c:\program files (x86)\Reference Assemblies\Microsoft\Framework\.NETCore\4.5\System.Runtime.WindowsRuntime.dll.

I’d stress that it’s the 4.5 version I took here rather than the 4.5.1 version as referencing that seemed to give me runtime problems.

And I made sure that I set “Copy Local” to false on that assembly;

Capture

And that got me to the point where I could compile some code and so I added a button to my UI and added this code behind it;


    async void OnSpeak(object sender, RoutedEventArgs e)
    {
      // This is a UWP API.
      SpeechSynthesizer synth = new SpeechSynthesizer();

      using (var stream = await synth.SynthesizeTextToStreamAsync("I am a desktop app"))
      {
        // We need a .NET stream
        using (var netStream = stream.AsStreamForRead())
        {
          // SoundPlayer is a .NET Framework API.
          SoundPlayer player = new SoundPlayer(netStream);

          player.Play();
        }
      }
    }

and, believe it or not, that actually worked although I’m somewhat unsure whether I should Dispose() both of those stream types above or just one of them.

I’ll admit that I had to chase down quite a few web references to get to the point where that code would compile and run correctly – the text above makes it look like it would take maybe 5 minutes whereas I’d say it took about 60 minutes.

I then used my post-build steps to repackage this as a UWP once again and verified that it would deploy and work in that context as well and it worked fine.

Using the Visual Studio 15 Preview Template

Having to keep running through that process of making the desktop app, building it into a .APPX and then installing/uninstalling it is a bit painful so there’s a Visual Studio packaging project template that helps in that area. I referenced it from my earlier blog post and it’s here;

Desktop to UWP Packaging Project for Visual Studio “15”

As far as I understand it, this project template supports a particular workflow where you already have a .APPX layout for your application on disk. Maybe you made that manually as I did in this post or maybe you made it via the Desktop App Converter as I did in my previous post.

Once you’ve got it, what you can then do is;

  • Configure a list of the outputs from your project that would need to be re-deployed into that .APPX layout whenever you build your projects in Visual Studio
  • Set the packaging project as your startup
  • Press F5 and have Visual Studio build, copy over the outputs and debug your UWP packaged app in its UWP context

which takes some of the manual steps out of installing/uninstalling packages and attaching debuggers and so on.

To try this out, albeit on my simplest of examples, I first followed the steps in the docs in that I added a packaging project to my solution;

Capture

and then made sure that this project referenced my other project so that it builds after that project;

Capture

and then I revisited my other project and removed the post-build steps that I had been using to make the .APPX file and sign it.

I then went and got the .APPX file and copied it into a folder c:\temp\PackageLayout on my system where I renamed it to .ZIP and extracted the contents before getting rid of both the .ZIP and the .APPX leaving just the files and folders that were within it;

Capture

Clearly, there are some extra pieces in there like the .vshost files but that comes from me building the .APPX from the output folder of the Debug build process in the first place.

With that in place, I changed the properties of the packaging project such that the “Package Layout” option pointed to my artefacts as below;

Capture

And then, as per the instructions, I edited the AppXPackageFileList.xml which the project uses to copy files from the build output into the package layout as those files get re-built.

My file ended up looking like this;

<?xml version="1.0" encoding="utf-8"?>
<Project ToolsVersion="14.0" xmlns="http://schemas.microsoft.com/developer/msbuild/2003">

  <PropertyGroup>
    <MyProjectOutputPath>c:\temp\helloworlddesktopapp\helloworlddesktopapp\</MyProjectOutputPath>
  </PropertyGroup>
  <ItemGroup>
    <LayoutFile Include="$(MyProjectOutputPath)bin\x64\Debug\HelloWorldDesktopApp.exe">
      <PackagePath>$(PackageLayout)\HelloWorldDesktopApp.exe</PackagePath>
    </LayoutFile>
  </ItemGroup>

</Project>

and, while there’s a couple of embedded, hard-coded paths in there, it does seem to work and I can build and set this packaging project as my start up project and hitting F5 runs it up.

Capture

Whose Desktop App Is It Anyway?

I’ve now got these 2 projects with 2 views of the same thing. If I set the HelloWorldDesktopApp project to be my startup project then I run a ‘regular’ desktop app;

Capture

and if I set the PackagingProject project to be my startup then I run a ‘UWP’ desktop app;

Capture

and they look pretty similar to me and they’re running the same code and it works in both contexts so how can I be convinced that there’s anything different going on here?

I thought that perhaps I could try one of those UWP APIs that require a package identity in order to function and see what it returns in the two different contexts here and the first API that I could think of was the API that would return the current package identity.

So, I modified my code such it was trying to make use of Package.Current.Id as below;

    void OnLoaded(object sender, RoutedEventArgs e)
    {
      var packageId = "package id is not set";

      try
      {
        packageId = $"package id is {Package.Current.Id.FullName}";
      }
      catch (InvalidOperationException)
      {
      }
      this.txtPackageId.Text = packageId;
    }

and now I get 2 different results based on whether I run the HelloWorldDesktopApp project or the PackagingProject;

Capture

versus;

Capture

and that makes it clearer that these two contexts are quite different.
