Windows 10 Anniversary Update, App Extensions and App Services

The intention of this post is really to bring together what I did in this post;

Windows 10 Anniversary Update Preview and Application Extensions

where I did some ‘hello world’ type stuff with App Extensions on the Anniversary Update with what I did in this post;

Example of an App Providing a Photo Search Service to Another App

last year which was some ‘hello world’ type stuff with App Services.

Being a relatively good citizen, that latter post came with source code which I can download and update such that it moves from showing how I can have;

Client of an App Service calling into an App Service which provides a flickR search service

on to showing how I can now have;

Extensible app loads app extension which provides it with a flickR search service via an App Service

Now, my example is going to be a little ‘fake’ because I’m going to make my ‘extensible app’ such that it doesn’t work until it finds one (and only one) extension which allows it to search for images and that’s a bit fake because I think most people would argue that an app which doesn’t work until it gets an extension isn’t really an app Smile

Moving past that slight ‘problem’, I downloaded the code from my post of last year which was a solution that contained 2 projects. One of which is the ‘client’ in that it consumes a service that searches for photos and the other is the ‘service’ in that it offers such an app service.

That code still runs, works on Anniversary Update (once I’d plugged in an API key for flickR) but it has a UI that I wanted to lose most of. Previously, the client asked the user to enter;

  • Package name of the app that provides the App Service
  • App Service name
  • Search term for which to search for photos for.

I think if I change this code from just ‘raw’ App Services to making use of App Extensions, I can get rid of those first 2 pieces of information leaving just a search box and a button.

I’d also like to enable/disable the UI based on the presence of an available App Extension to do the searching and so the first thing I tried out was sketching that out as a custom StateTrigger…

Step 1 – Enabling/Disabling UI Based on the Presence of an Extension

I made 2 projects – one for the app to be extended and one for the app to do the extending;

Capture

For the ExtensibleApp I made sure that its manifest specified the extension that it was prepared to host;

      <Extensions>
        <uap3:Extension xmlns:uap3="http://schemas.microsoft.com/appx/manifest/uap/windows10/3"
                        Category="windows.appExtensionHost">
          <uap3:AppExtensionHost>
            <uap3:Name>PictureSearchExtension</uap3:Name>
          </uap3:AppExtensionHost>
        </uap3:Extension>
      </Extensions>

and for the PictureSearchExtensionApp I made sure its manifest specified the extension that it exposes;

      <Extensions>
        <uap3:Extension xmlns:uap3="http://schemas.microsoft.com/appx/manifest/uap/windows10/3"
                        Category="windows.appExtension">
          <uap3:AppExtension Name="PictureSearchExtension" Id="PictureSearchId" PublicFolder="PublicFolder" DisplayName="flickR picture search">
            <uap3:Properties>
              <ServiceName>flickRSearchService</ServiceName>
            </uap3:Properties>
          </uap3:AppExtension>
        </uap3:Extension>
      </Extensions>

I then sketched out a quick StateTrigger with the idea being that it can control visual states depending on whether an App Extension of a given name is present on the system. I’m not sure I have this 100% right and it certainly could be a lot more functional but I didn’t spend too much time on it, largely just moving code into it from my post of yesterday;

  public class ExtensionTrigger : StateTriggerBase
  {
    public ExtensionTrigger()
    {
      this.SetActive(false);
    }

    async Task SetActiveBasedOnExtensionStatusAsync()
    {
      bool active = false;

      if (this.IsNamingSpecified)
      {
        if (!this.IsCatalogOpen)
        {
          this.catalog = AppExtensionCatalog.Open(this.ExtensionName);
          this.catalog.PackageInstalled += OnPackagedInstalled;
          this.catalog.PackageUninstalling += OnPackagedUninstalling;
        }
        active = await this.FindExtensionInCatalog();
      }
      this.SetActive(active);
    }
    async Task<bool> FindExtensionInCatalog()
    {
      bool found = false;

      var extensions = await this.catalog.FindAllAsync();

      var myExtension = extensions.FirstOrDefault();

      if (myExtension != null)
      {
        this.Extension = myExtension;
        found = true;
      }
      return (found);
    }
    async void OnPackagedUninstalling(AppExtensionCatalog sender,
      AppExtensionPackageUninstallingEventArgs args)
    {
      await this.Dispatcher.RunAsync(
        CoreDispatcherPriority.Normal,
        () =>
        {
          this.SetActive(false);
        }
      );
    }
    async void OnPackagedInstalled(AppExtensionCatalog sender, AppExtensionPackageInstalledEventArgs args)
    {
      await this.Dispatcher.RunAsync(
        CoreDispatcherPriority.Normal,
        async () =>
        {
          await this.SetActiveBasedOnExtensionStatusAsync();
        }
      );
    }
    public string ExtensionName
    {
      get
      {
        return (this.extensionName);
      }
      set
      {
        if (!string.IsNullOrEmpty(this.extensionName))
        {
          throw new InvalidOperationException("Not considered changing this value yet");
        }
        this.extensionName = value;
        this.SetActiveBasedOnExtensionStatusAsync();
      }
    }
    string extensionName;
    public AppExtension Extension
    {
      get; set;
    }
    bool IsCatalogOpen => this.catalog != null;

    bool IsNamingSpecified
      => !string.IsNullOrEmpty(this.ExtensionName);

    AppExtensionCatalog catalog;
  }

and then took ‘the UI’ from my previous blog post around app services and made that the UI of my ExtensibleApp’s one and only page as below;

 <Grid
    Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
    <VisualStateManager.VisualStateGroups>
      <VisualStateGroup
        x:Name="uiStates">
        <VisualState
          x:Name="_default" />
        <VisualState
          x:Name="extensionPresent">
          <VisualState.StateTriggers>
            <local:ExtensionTrigger
              ExtensionName="PictureSearchExtension"
              x:Name="extensionTrigger" />
          </VisualState.StateTriggers>
          <VisualState.Setters>
            <Setter
              Target="txtNoExtension.Visibility"
              Value="Collapsed" />
            <Setter
              Target="stackExtension.Visibility"
              Value="Visible" />
          </VisualState.Setters>
        </VisualState>
      </VisualStateGroup>
    </VisualStateManager.VisualStateGroups>

    <Grid
      Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
      <Grid.Resources>
        <Style
          TargetType="TextBox">
          <Setter
            Property="FontSize"
            Value="24" />
          <Setter
            Property="FontFamily"
            Value="Segoe Semilight" />
          <Setter
            Property="Margin"
            Value="0,0,0,10" />
        </Style>
        <Style
          TargetType="TextBlock">
          <Setter
            Property="FontSize"
            Value="24" />
          <Setter
            Property="FontFamily"
            Value="Segoe Semilight" />
          <Setter
            Property="TextAlignment"
            Value="Center" />
          <Setter
            Property="Margin"
            Value="0,0,0,10" />
        </Style>
      </Grid.Resources>
      <Image
        Stretch="UniformToFill"
        x:Name="image" />
      <StackPanel
        x:Name="stackExtension"
        HorizontalAlignment="Center"
        VerticalAlignment="Center"
        Margin="20"
        Visibility="Collapsed">
        <TextBox
          Header="Photo query"
          x:Name="txtQuery"
          Text="beach"
          Margin="0,10,0,0" />
        <Button
          Content="Call Other Application"
          Click="OnSearch"
          FontSize="24"
          HorizontalAlignment="Center"
          Margin="0,10,0,0" />
      </StackPanel>
      <TextBlock
        Text="No Search Extension"
        x:Name="txtNoExtension"
        HorizontalAlignment="Center"
        VerticalAlignment="Center"/>
    </Grid>
  </Grid>

And so the idea here is that the ExtensionTrigger switches the UI between this state for when no App Extension is available to do image searching;

Capture

into this state when an App Extension is available;

Capture

and that’s dynamic in that it switches as the extension app is installed/removed on the system.

Step 2 – Making a Call to the App Service

I lifted the code from my previous blog post in order to make a call to the ‘extension’ app service which is going to search for photos for me as below;

    async void OnSearch(object sender, RoutedEventArgs e)
    {
      AppServiceConnection connection = new AppServiceConnection();

      // Reach into the properties of the extension.
      var extensionProperties = await this.extensionTrigger.Extension.GetExtensionPropertiesAsync();

      // We (recklessly) assume that there is one in there called ServiceName which should, naturally
      // be in a constant.
      connection.AppServiceName =
        (string)((PropertySet)extensionProperties["ServiceName"])["#text"];

      // We also need to specify the package family name
      connection.PackageFamilyName = this.extensionTrigger.Extension.Package.Id.FamilyName;

      // Now we can open the connection - code from here is lifted from last year's blog
      // post.
      var status = await connection.OpenAsync();

      if (status == AppServiceConnectionStatus.Success)
      {
        ValueSet parameters = new ValueSet();
        parameters["query"] = this.txtQuery.Text;

        var response = await connection.SendMessageAsync(parameters);

        if (response.Status == AppServiceResponseStatus.Success)
        {
          var token = response.Message["pictureToken"] as string;

          if (!string.IsNullOrEmpty(token))
          {
            var file = await SharedStorageAccessManager.RedeemTokenForFileAsync((string)token);

            BitmapImage bitmap = new BitmapImage();

            using (var fileStream = await file.OpenReadAsync())
            {
              await bitmap.SetSourceAsync(fileStream);
            }
            this.image.Source = bitmap;
          }
        }
        connection.Dispose();
      }
    }

This code differs only from the code I posted last year in that it no longer needs to get hold of a package family name or an app service name from the UI in order to open up an AppServiceConnection.

Instead, both of those details are obtained from the AppExtension that we have loaded – one is from the Package itself and the other is from the metadata Properties that I specified in the manifest for the PictureSearchExtensionApp project.

Step 3 – An App Service in Single Process Execution Mode

In my blog post from last year, I implemented the App Service as a background task so I thought I’d see whether I could move that demo code into an in-process model given that this is something that the Anniversary Update enables.

I made sure that my manifest for my PictureSearchExtensionApp specified that it offered an app service;

Capture

and then I overrode the App.OnBackgroundActivated class and took the code from the background task in my previous blog post and dropped it into that override. I’m not sure that this is a great implementation or anything, it was just what I already had. This is what I added to the boilerplate App class generated by Visual Studio’s blank project template;

  protected override void OnBackgroundActivated(BackgroundActivatedEventArgs args)
    {
      this.deferral = args.TaskInstance.GetDeferral();
      args.TaskInstance.Canceled += OnCancelled;

      var appService = args.TaskInstance.TriggerDetails as AppServiceTriggerDetails;

      if (appService != null)
      {
        // we should do more validation here
        if (appService.Name == "flickRSearchService")
        {
          appService.AppServiceConnection.RequestReceived += OnAppServiceRequestReceived;
        }
      }
      else
      {
        this.deferral.Complete();
        this.deferral = null;
      }
    }
    async void OnAppServiceRequestReceived(AppServiceConnection sender,
      AppServiceRequestReceivedEventArgs args)
    {
      var localDeferral = args.GetDeferral();
      var parameters = args.Request.Message;
      ValueSet vs = new ValueSet();

      if (parameters.ContainsKey("query"))
      {
        var result = await FlickrSearcher.SearchAsync((string)parameters["query"]);

        if ((result != null) && (result.Count > 0))
        {
          var first = result[0];
          HttpClient client = new HttpClient();
          using (var response = await client.GetAsync(new Uri(first.ImageUrl)))
          {
            var file = await ApplicationData.Current.TemporaryFolder.CreateFileAsync(first.Id.ToString(),
              CreationCollisionOption.ReplaceExisting);

            using (var fileStream = await file.OpenStreamForWriteAsync())
            {
              await response.Content.CopyToAsync(fileStream);
            }
            var token = SharedStorageAccessManager.AddFile(file);
            vs["pictureToken"] = token;
          }
        }
      }
      await args.Request.SendResponseAsync(vs);
      localDeferral.Complete();
    }
    void OnCancelled(IBackgroundTaskInstance sender,
      BackgroundTaskCancellationReason reason)
    {
      this.deferral.Complete();
    }
    BackgroundTaskDeferral deferral;

and the only change here is to make this run in process, otherwise the code is unchanged from the earlier example I posted.

Step 4 – Try it Out

I used two copies of Visual Studio to debug this but I have a problem making it into a screen capture right now so I used static screenshots below.

Initially, there’s no extension deployed so the UI says so…

pic1

I deploy the extension application from VS;

pic2

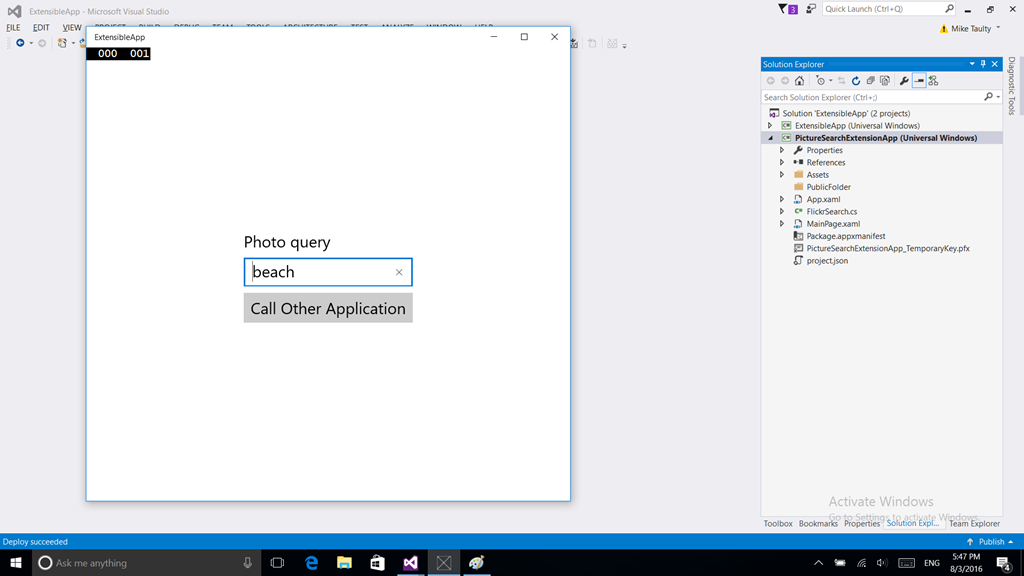

The UI updates as it can now search for pictures using the app service offered by the extension;

pic3

It brings back a picture based on the search term;

pic4

I undeploy the extension app;

pic5

The UI reverts back to show that there is no extension available although the colouring of the image here makes that tricky to see;

pic6

Step 5 – Share It

The code for this is very rough/ready but if you wanted it then feel free to grab it from here. The only thing I’d say is that you’ll need an API key for flickR to make the code compile.

Other Thoughts

I still worry that there’s quite a bit of ‘shared’ information between the application that is extensible and the application that is providing an extension. For instance, both have to agree on;

  • the name of the extension
  • the property set that describes the extension

and then if the extension is providing an App Service like mine here then they also have to agree on how the data which flows across that boundary is to be represented.

I guess it’s easy enough to write that sort of information on a website somewhere and publish it but there’s a part of me wishes that it could be described by a strongly typed interface such that there was less room for error but maybe this is just me harking back to my earlier days of WCF, .NET Remoting, COM, DCE, RPC, etc Smile

Regardless, I like this way in which App Extensions can act as a ‘broker’ for extending one application with App Services offered by another.
